High Temperature LED Sports Floodlights For Stadium Retrofit Projects

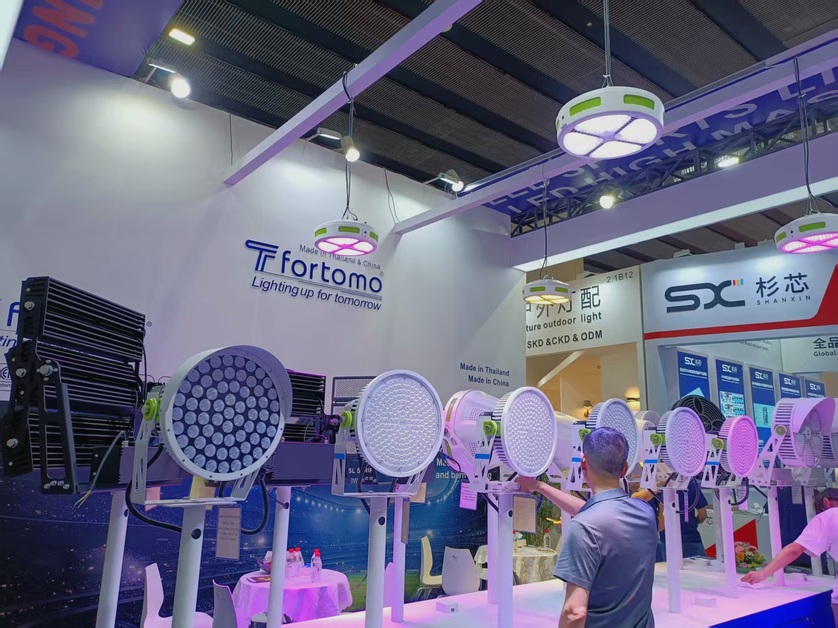

Weatherproof LED Stadium Retrofit
Weatherproof LED Stadium Retrofit

Stadium lighting retrofit projects in hot climates require luminaires that can maintain reliable operation under high ambient temperatures while providing sufficient output for large sports grounds. When replacing conventional metal halide floodlights, contractors should consider thermal management, protection rating, surge protection, optical distribution and the existing high-mast structure.

The FORTOMO 46SL LED high mast floodlight is available in 600W, 1000W and 1500W configurations, making it suitable for high-power stadium retrofit and outdoor sports lighting projects.

LED Floodlights for Hot Climate Stadiums

The 46SL provides 90,000 lm at 600W, 150,000 lm at 1000W and 225,000 lm at 1500W , with a stated efficacy of 140–170 lm/W . This multi-wattage range allows contractors to select different outputs for different areas of a stadium or sports ground.

The floodlight can be used for:

  • Football stadiums
  • Rugby grounds
  • Outdoor arenas
  • Athletics facilities
  • High-mast sports fields
  • Large training grounds
  • Multi-sport venues

The final wattage and fixture quantity should be determined through project-specific photometric calculations.

Thermal Management for High Ambient Temperatures

High ambient temperatures can place additional thermal demands on high-power LED luminaires. Effective heat dissipation is therefore important when designing stadium lighting for hot and dry climates.

The 46SL uses high-conductivity thermal management and a pure aluminium housing to support heat dissipation. It is specified for an ambient operating temperature of Ta=45°C .

For projects in particularly hot environments, contractors should evaluate the actual site temperature, installation position and airflow conditions when selecting the appropriate luminaire configuration.

600W–1500W Options for Retrofit Projects

Different stadium areas may require different lighting outputs. A single wattage may not be suitable for every existing mast position, especially where pole heights and distances from the playing surface vary.

The 46SL provides 600W, 1000W and 1500W options, allowing lighting designers to match output to the existing stadium layout.

Rather than replacing metal halide floodlights on a simple watt-for-watt basis, a professional retrofit should consider:

  • Existing mast height
  • Pitch dimensions
  • Existing floodlight positions
  • Required illuminance
  • Uniformity
  • Beam angle
  • Electrical infrastructure
  • Local environmental conditions

Flexible Beam Angles for High-Mast Lighting

The 46SL offers 10°, 15°, 20°, 40°, 60° and 90° beam angles .

Narrow beam optics can be useful for directing light over longer distances from high masts, while wider distributions can provide broader coverage. Selecting the correct optics can help reduce unnecessary light spill and improve the efficiency of the retrofit design.

For an existing stadium, photometric modelling can determine whether different beam angles should be combined across the lighting columns.

IP66 and Surge Protection for Outdoor Stadiums

Stadium floodlights installed on high masts are exposed to rain, dust, wind and electrical transients. The 46SL features IP66 protection and 20kV surge protection for demanding outdoor applications.

Its aluminium housing also uses a powder-painting process for corrosion resistance , which can be beneficial for outdoor sports facilities exposed to changing weather conditions.

Low-EPA Design for Existing Masts

When upgrading stadium lighting, the structural capacity of existing columns should be assessed before installing new luminaires.

The 46SL features a low-EPA design intended to withstand high wind levels. This can help contractors evaluate the suitability of the existing high-mast infrastructure when planning a retrofit.

However, final structural suitability should always be verified according to the specific mast, mounting arrangement and local wind-loading requirements.

Smart Controls for Stadium Retrofit

LED retrofit projects can also introduce modern lighting control capabilities. The 46SL supports 0–10V, PWM, DALI, DMX512 and Synapse control systems.

Compatible controls can allow stadium operators to use different lighting levels for training, competition, maintenance and other activities, potentially avoiding unnecessary full-power operation.

Designing LED Retrofits for Hot Sports Facilities

A professional high-temperature stadium retrofit should evaluate the complete lighting system rather than selecting fixtures based only on wattage. A typical process includes:

  1. Surveying existing lighting masts
  2. Checking structural and electrical conditions
  3. Establishing required lux and uniformity
  4. Selecting LED wattage
  5. Selecting beam angles
  6. Performing photometric calculations
  7. Checking glare and light spill
  8. Planning control requirements
  9. Installing and accurately aiming the luminaires

The FORTOMO 46SL combines 600W–1500W output, 140–170 lm/W efficacy, aluminium thermal management, 10°–90° optics, IP66 protection, 20kV surge protection and multiple control options , providing a flexible platform for stadium retrofit projects in hot climates worldwide.
