SAA-Certified LED Sports Flood Lights for Global Tennis Court Projects
Tennis court lighting requires more than simply installing high-output floodlights. Correct illuminance, uniformity, glare control, beam distribution, and reliable outdoor performance all need to be considered when designing a professional court lighting system. For Australian projects, applicable electrical and sports-lighting requirements should also be verified for the specific installation.
40SL for Professional Tennis Court Lighting

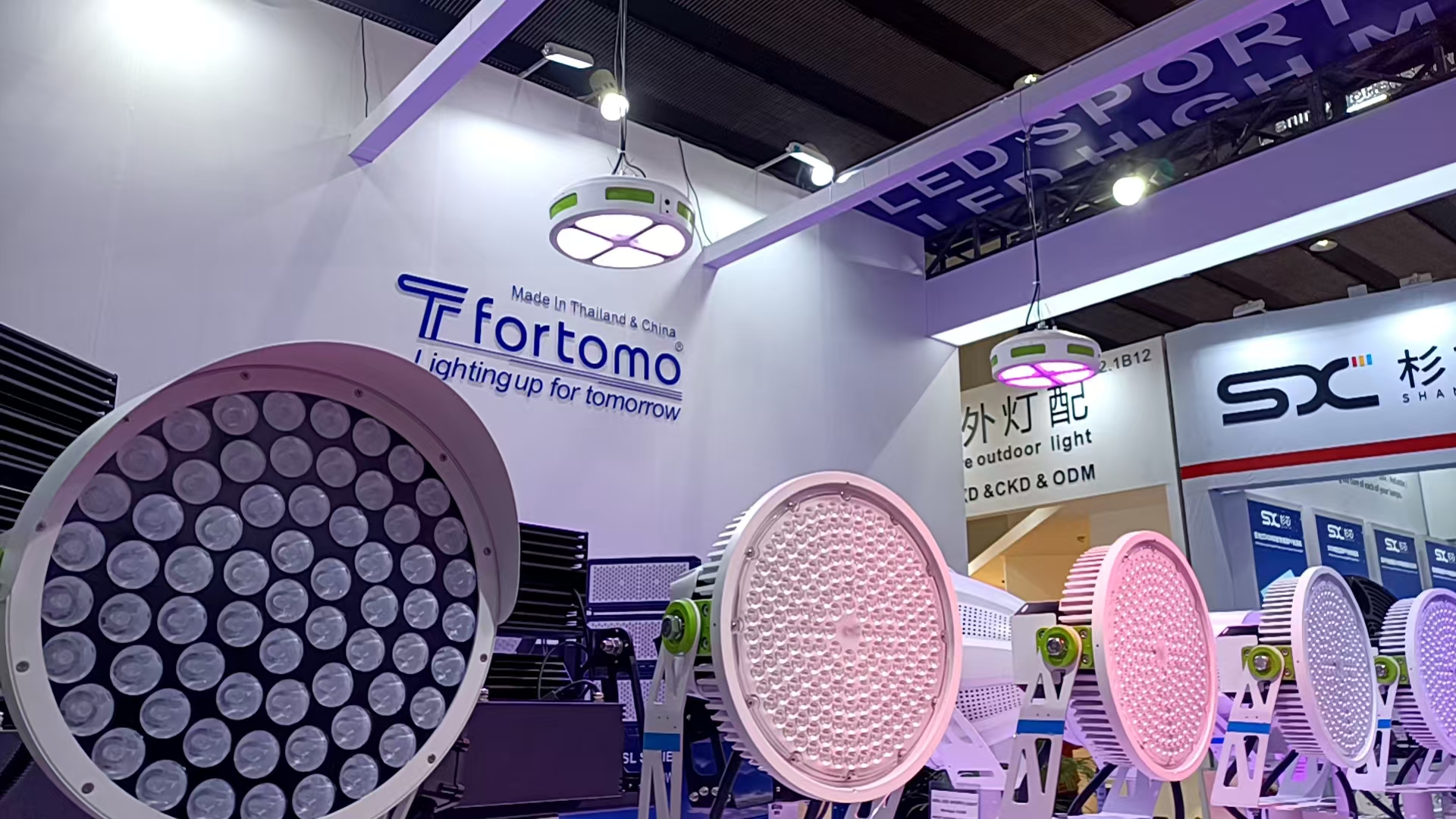

The FORTOMO 40SL is a high-power LED sports flood light available in 500W, 600W, and 750W configurations. With luminous efficacy of up to 150–170 lm/W , it provides high output for larger tennis facilities, multi-court venues, training centers, and other outdoor sports applications.
The appropriate wattage should be selected according to court layout, pole height, mounting positions, required illuminance, and lighting class rather than simply replacing an existing Metal Halide fixture with an equivalent wattage.
Beam Angles for Tennis Court Applications
The 40SL supports multiple beam options, including 25°, 35°, 45°, and 55° . This allows lighting designers to select an appropriate distribution according to mounting height and court geometry.
For higher poles or longer throw distances, narrower optics can help concentrate light toward the playing area. Wider beam angles can provide broader coverage from lower mounting positions.
Photometric simulation using the selected IES file should be completed to determine fixture quantity, aiming angles, illuminance, and uniformity before installation.
Low-Glare and Controlled Outdoor Lighting
Glare is an important consideration for tennis players because they frequently look upward to track the ball. Proper fixture positioning, aiming, optical selection, and shielding can help reduce direct glare and unnecessary light spill.
The 40SL is also available with 0–10V, PWM, DALI, DMX512, and Synapse control options, depending on the selected configuration. Dimming can allow different lighting levels to be used for training, recreational sessions, and higher-level competition.
IP66 Protection for Outdoor Tennis Courts
Outdoor tennis courts are exposed to rain, humidity, dust, UV radiation, and temperature fluctuations. The 40SL features IP66 protection and an aluminium housing designed for outdoor heat dissipation.
The fixture can be configured with a tempered glass or PC lens , with UV-resistant options available for installations exposed to strong sunlight. Optional 10kV/20kV surge protection can provide additional protection for exposed outdoor electrical installations.
40SL Key Features
- 500W / 600W / 750W
- Up to 150–170 lm/W
- Multiple beam angles: 25°–55°
- IP66 outdoor protection
- Tempered glass or PC lens options
- UV-resistant options
- 10kV/20kV surge protection options
- 0–10V, PWM, DALI and DMX512 controls
- Suitable for large outdoor sports facilities
- Available for global project supply
Australian and Global Tennis Court Projects
For Australian tennis court projects, buyers should verify the applicable AS/NZS standards, electrical compliance, and certification requirements for the selected luminaire and driver configuration. SAA certification or other compliance claims should be confirmed against the actual product documentation rather than assumed from the application.
Outside Australia, the 40SL can be evaluated against local electrical and sports-lighting requirements for projects in Southeast Asia, Europe, the Middle East, North America, and other international markets .
As a global LED sports lighting manufacturer, FORTOMO supplies high-output sports floodlights for tennis courts, football fields, cricket grounds, stadiums, training facilities, and multi-sport complexes .
