Dimmable 0-10V LED Flood Lights for Metal Halide Sports Field Retrofit Projects
Replacing traditional Metal Halide floodlights with dimmable LED technology can improve energy efficiency, lighting control, and maintenance performance for sports fields. For football grounds, tennis courts, training facilities, and multi-sport venues, 0–10V dimming provides a practical way to adjust lighting according to different operating requirements.
0-10V LED Flood Lights for Metal Halide Replacement

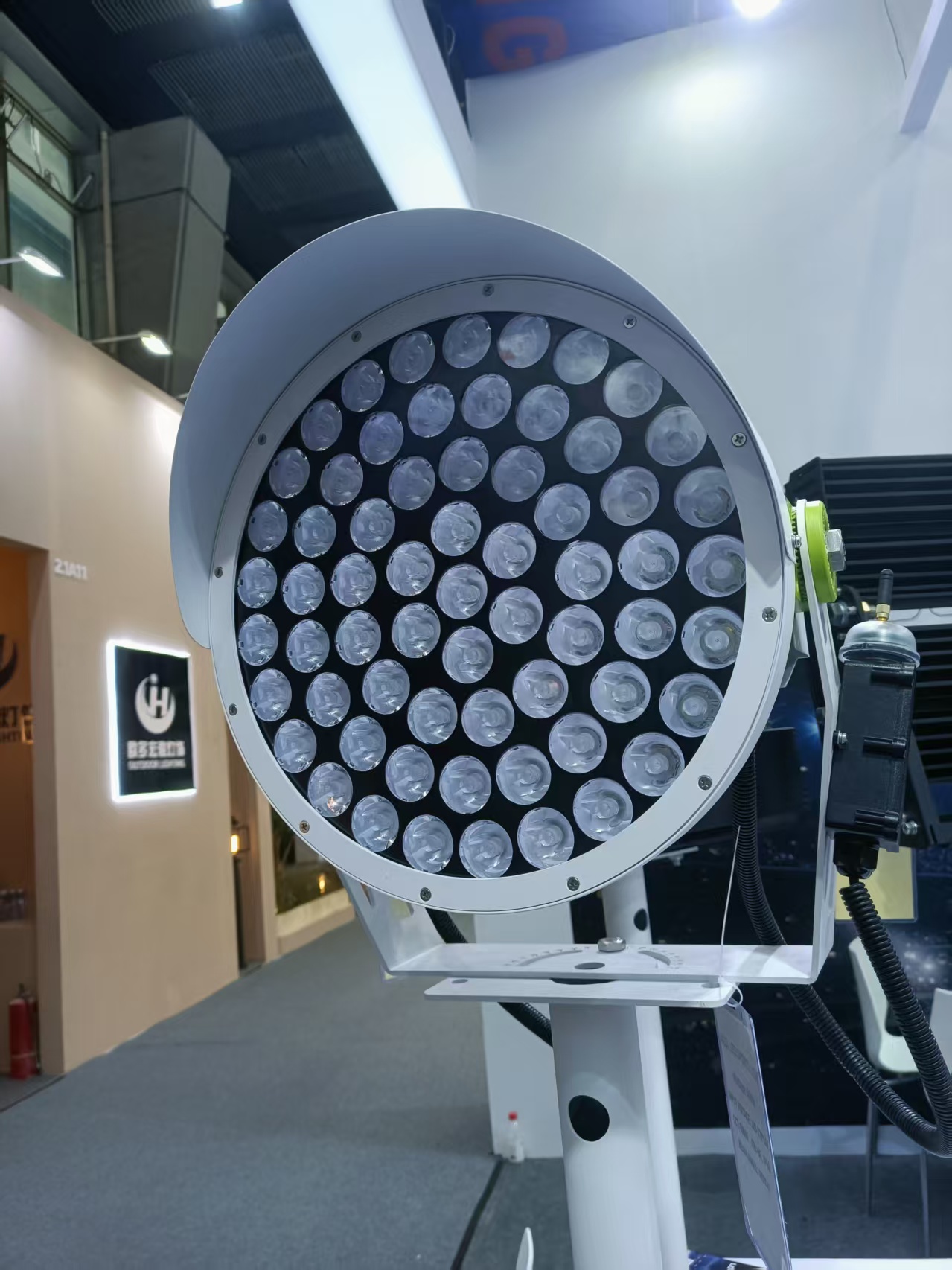

The FORTOMO 41SL is a high-output LED sports light available in 300W, 400W, and 500W configurations, with lumen output from 45,000 to 75,000 lm and luminous efficacy of 150–170 lm/W .
For a Metal Halide to LED sports field retrofit , selecting the replacement fixture based only on the existing wattage may result in inefficient lighting distribution. Pole height, field dimensions, fixture position, required illuminance, and beam angle should be considered through a professional photometric calculation.
Flexible Beam Options for Sports Fields
The 41SL supports NEMA2–NEMA6 optics and beam angles from 7° to 45° , including 7°, 15°, 25°, 35°, and 45° options. This allows contractors and lighting designers to select suitable optics for different mounting heights and field layouts.
Narrow beam options can concentrate light over longer distances, while wider beams can provide broader coverage for suitable applications. Correct beam selection can help improve uniformity and reduce unnecessary light spill.
Dimmable LED Sports Lighting with 41SL
The 41SL supports 0–10V, PWM, DALI, and DMX512 control systems. 0–10V dimming can be used to adjust lighting levels when full output is not required, such as during training sessions, maintenance periods, or lower-use operating hours.
The fixture also provides UGR <19 , no-flicker operation, IP66 protection, and optional 10kV/20kV surge protection. Its die-cast aluminium housing and airflow-based thermal design support reliable outdoor operation.
Key 41SL Features
- 300W, 400W and 500W options
- 45,000–75,000 lm output
- 150–170 lm/W efficacy
- 7°–45° beam angles
- NEMA2–NEMA6 optics
- 0–10V, PWM, DALI and DMX512 controls
- IP66 protection
- UGR <19
- 10kV/20kV surge protection options
- 3000K–6000K CCT options
- Up to 100,000 hours rated life
- 360° adjustable mounting
- Removable driver box
LED Sports Field Retrofit for Global Projects
A successful dimmable LED sports lighting retrofit should balance energy efficiency, lighting uniformity, glare control, and operational flexibility. The 41SL's multiple power levels, beam distributions, and control options make it suitable for replacing Metal Halide floodlights across different sports facilities.
For international sports lighting contractors, distributors, and project developers, the 41SL provides a flexible solution for 0–10V dimmable LED flood lights , Metal Halide replacement projects, and modern sports field lighting upgrades.
