Dialux Lighting Design Service For Metal Halide To LED Oval Retrofit AU
Replacing aging Metal Halide floodlights with LED technology can reduce energy consumption and maintenance requirements for sports facilities. For stadiums, football fields, training grounds, and other outdoor venues, fixture construction and thermal management are important factors when selecting a long-term LED replacement.
LED Sports Lights for Metal Halide Retrofit

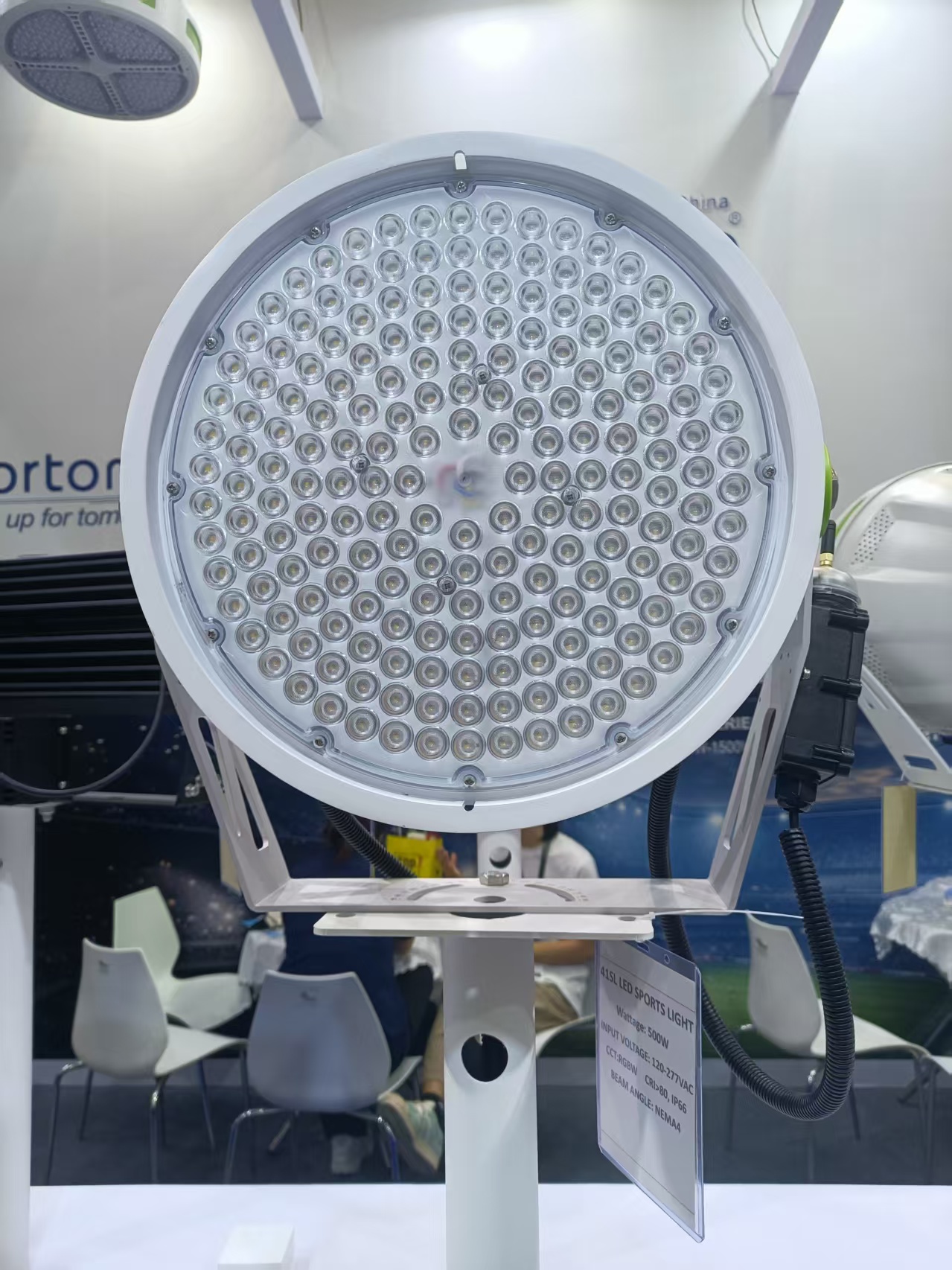

The FORTOMO 40SL is a high-output LED sports light designed for demanding outdoor sports applications. It is available in 500W, 600W, and 750W configurations, with luminous efficacy of 150–170 lm/W .
For a Metal Halide to LED sports lighting retrofit , the replacement should be selected according to pole height, existing fixture positions, field dimensions, required illuminance, and beam distribution rather than simply matching the wattage of the old fixture.
Pure Aluminium Housing for Better Heat Dissipation
Thermal management directly affects the long-term performance of LED lighting. The 40SL uses a pure aluminium housing with an airflow-based cooling design. Aluminium's high thermal conductivity helps transfer heat away from the LED components and supports stable operation during extended lighting periods.
This construction is particularly valuable for high-output sports floodlights that operate for long hours. Better heat dissipation can help reduce thermal stress on LED components and support the fixture's rated service life.
40SL Optics for Different Sports Facilities
The 40SL provides NEMA2, NEMA3, NEMA4, 15°, 25°, 35°, and 45° beam options . This allows lighting designers to select an appropriate distribution according to mounting height, field size, and target area.
For LED stadium retrofit projects , correct beam selection can improve light distribution and reduce unnecessary spill outside the playing area. A professional photometric calculation can determine the appropriate fixture quantity, beam angle, and aiming position for each project.
Long-Life Features for Lower Maintenance
The 40SL has a rated life of up to 100,000 hours and is designed for long-term outdoor operation. Its IP66 protection helps protect the fixture against outdoor environmental exposure, while optional 10kV/20kV surge protection provides additional protection for demanding installations.
A removable driver box and quick plug connection can also simplify installation and future maintenance, which is particularly useful where sports lights are mounted on high poles.
Key 40SL Features
- 500W, 600W and 750W options
- 150–170 lm/W luminous efficacy
- Pure aluminium housing
- Airflow-based heat dissipation
- Up to 100,000 hours rated life
- NEMA2–NEMA4 optics
- 15°–45° beam options
- IP66 protection
- 10kV/20kV surge protection options
- UGR <19
- 3000K–6000K CCT options
- 0–10V, PWM, DALI and DMX512 controls
- 360° adjustable mounting
- Removable driver box
Global Metal Halide Replacement Projects
A successful long-life LED sports lighting retrofit should balance energy efficiency, thermal performance, optical control, environmental protection, and maintenance requirements. The 40SL combines high-output performance with a pure aluminium housing and flexible optics for different outdoor sports applications.
For global sports lighting contractors, distributors, and facility developers, the 40SL provides a practical solution for Metal Halide replacement stadium lights , football fields, training grounds, and other large outdoor sports lighting projects.
